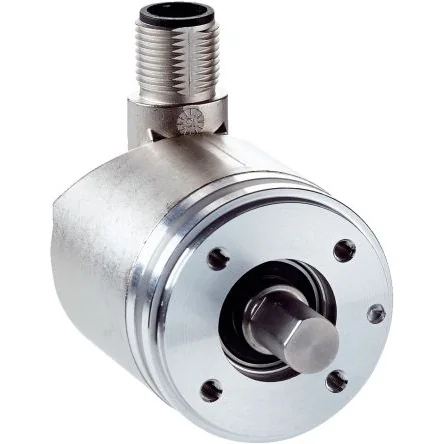

SICK AHS/AHM36 Series Absolute Absolute Encoder, 4096 ppr, SSI Signal, Solid Type, 6mm Shaft - AHM36B-S1AC012x12

Encoder Technology = Absolute
Pulses Per Revolution = 4096
Maximum Revolutions = 6000rpm
Output Signal Type = SSI
Shaft Type = Solid
Shaft Diameter = 6mm
Resolution = 12 x 12 bit
Steps Per Revolution = 4096Steps
IP Rating = IP65
Overall Height = 36mm
Overall Width = 36mm
Overall Depth = 43mm
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +70°C
Connection Type = Plug-In Connection

OverviewAt a glance36 mm absolute encoder with maximum 26 bits (singleturn: 14 bits multiturn: 12 bits) Face mount flange, servo flange, blind hollow shaft Rotatable male connector or cable connection IO-Link, CANopen, SSI interface with programmable parameterization Diagnostic functions Stainless steel (Inox versions) IP67 to IP69K protection classYour BenefitSimple mechanical installation thanks to the rotatable male connector or cable connection and various mounting hole patterns and shafts Easy integration into various control environments with IO-Link, CANopen and SSI interfaces Intelligent diagnostic functions evaluate maintenance intervals for the entire system Thanks to the rugged, reliable, fully-magnetic sensors, they can also be used in harsh environments High resistance to ambient influences due to stainless steel design and IP69K enclosure rating (Inox versions) Space-saving and cost-effective design High performance at a cost-efficient price Positioning of the gripper arm on garbage trucks Position detection in aircraft tractors Steering angle detection on heavy trucksAHS/AHM36 absolute encoders set standards when it comes to mechanical adaptation, communication and resistance to environmental influences. With their rotatable male connector or cable connection as well as various mounting hole patterns and adapter flanges, these encoders are suitable for nearly any application. The IO-Link, CANopen and SSI interfaces enable easy integration into various control environments. Encoder configuration can be adapted to individual needs using various tools. The rugged, reliable, fully magnetic sensor system provides a maximum resolution of 14 bits (singleturn) or 26 bits (multiturn). Due to the stainless-steel design and enclosure rating IP69K, the Inox versions are suitable for use under very harsh ambient conditions.ApplicationsMeasures the absolute position in various industries, machines, and tools, including automated guided vehicle systems (AGV systems), industrial trucks, commercial vehicles, packaging machines, logistics applications, machine construction and medical technology. Length measurement of packaging film Monitoring or conveyed tree trunks Screw gun guidance and monitoring screw-in depth Azimuth motor control Measurement of object lengths and gaps between objects Monitoring the roll-down gate to the baggage hall Steering angle detection of automated guided vehicles Position determination on a revolving door Position determination of high speed gates Determining the length of square bales Measuring tree trunks on the harvester Leveling the excavator arm Detection of slewing ring position Encoder for angle detection on the boom Monitoring of the drill feed and drill speed Encoder for angle detection at the aerial ladder Positioning the water/foam monitorNoteProduct details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
