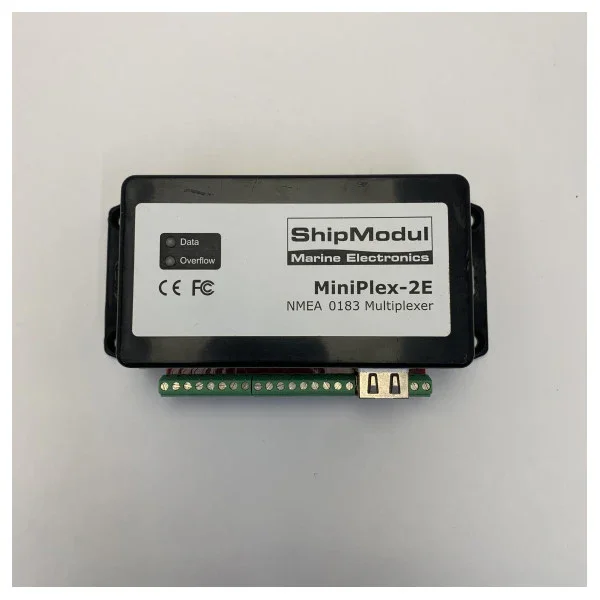

ShipModul MiniPlex 2E NMEA0183 Multiplexer: Your Data Bridge at Sea
Optimize your navigation network on board with the ShipModul MiniPlex 2E NMEA0183 Multiplexer. This advanced second-generation NMEA multiplexer solves the fundamental NMEA 0183 problem by combining data from multiple navigation instruments into a uniform, coordinated data stream, and efficiently distributing it to other instruments or your computer.
The MiniPlex 2E is the perfect link for those who need reliable and flexible data connectivity. It is specifically equipped with an Ethernet interface for a modern and fast connection to your onboard network, laptop, or tablet.
Main Features

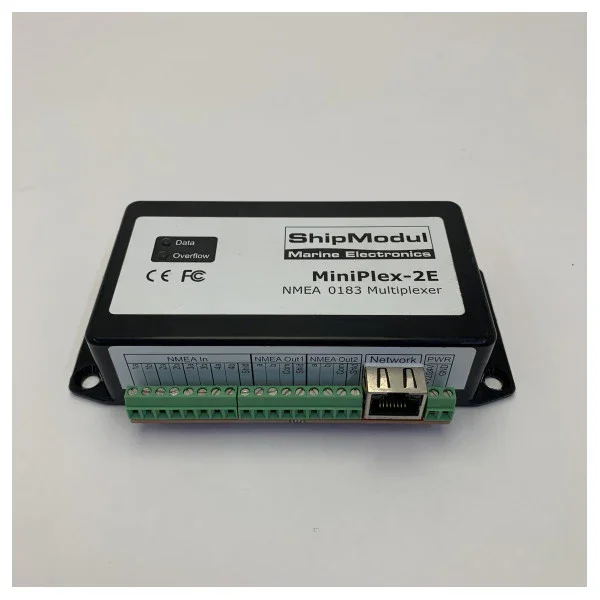

- Advanced NMEA 0183 Multiplexing: Combines signals from four NMEA 0183 listening ports (Inputs) and intelligently routes them to two NMEA 0183 transmitting ports (Outputs) and the Ethernet interface.
- Ethernet Connectivity (Interface): The MiniPlex 2E stands out with its built-in Ethernet port, allowing you to send and receive NMEA data bidirectionally via a network connection.
- AIS Support: Fully compatible with AIS equipment and supports the higher communication speed required for this.
- SeaTalk Conversion: One of the inputs can be configured as a Raymarine SeaTalk port, converting SeaTalk data to NMEA 0183 sentences and vice versa, enabling integration with existing Raymarine equipment.
- Bidirectional Data: The Ethernet and NMEA ports support bidirectional traffic, meaning you can control navigation software or an autopilot via the multiplexer.
- Data Filtering and Priority: Use the included configuration software to filter NMEA sentences and assign priorities to inputs, ensuring you always receive the most relevant data.
Specifications
The MiniPlex 2E is built for reliability and broad compatibility at sea.
- Power Supply Voltage: 8 to 35V DC. The connection is protected against reverse polarity.
- Current Consumption: Approximately 40mA (maximum 70mA at full load on the talker ports).
- NMEA Inputs: Four (4) opto-isolated NMEA 0183 listening ports. Input 4 can be set as a SeaTalk port.
- NMEA Outputs: Two (2) NMEA 0183 transmitting ports. Output 2 is a High Speed port.
- Computer Interface: One (1) Ethernet port for network connection.
- Baud Rate Support: Supports all standard speeds from 4800 Baud to 57600 Baud on the NMEA ports. The Ethernet interface operates at the speed of your network.
- Data Functions: Including SeaTalk to NMEA conversion, automatic switching between navigation sources, and the ability to adjust units (e.g., knots to kilometres per hour).
With the ShipModul MiniPlex 2E, you are assured of a powerful and stable data infrastructure that allows your navigation instruments to work together. The simple configuration via the Ethernet port makes this a user-friendly and future-proof solution for your boat.
