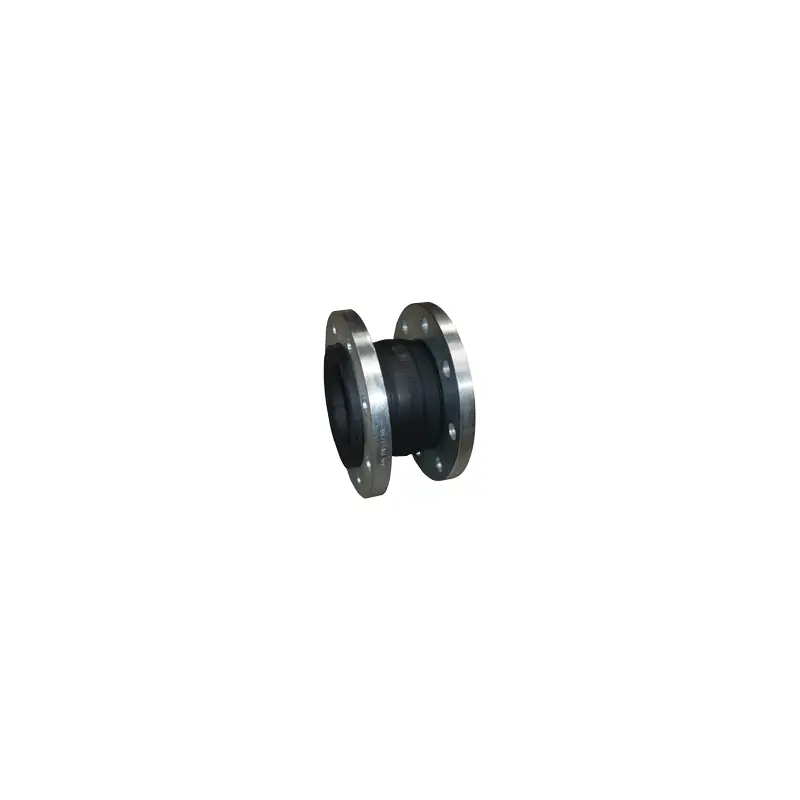

Key Features:
- Designed for linear and angular compensation, as well as absorption of vibrations and noise in piping systems.
- Equipped with rotating flanges for flexible installation.
- Lloyd's Register Marine approved, ensuring compliance with maritime standards.
Technical Specifications:
- Nominal Pressure: 16 bar
- Temperature Range: -10°C to +80°C
- Flange Connection: PN10/16 according to EN 1092-1
- Movement Absorption:
- Axial Compression: 35 mm
- Axial Extension: 10 mm
- Lateral Offset: 15 mm
- Angular Deviation: 25°
Materials:
- Bellows: Nitrile Butadiene Rubber (NBR), reinforced with nylon cord for enhanced durability.
- Flanges: Steel, electro-galvanized for corrosion resistance.
Dimensions:
- Nominal Diameter (DN): 32 mm
- Length: 95 mm
- Flange Diameter (D): 140 mm
- Bolt Circle Diameter (PCD): 100 mm
- Bolt Hole Diameter (d): M16
Compatibility Information:
- Suitable for applications involving mineral oils, hydrocarbons, and fuels.
- Compatible with piping systems requiring PN10/16 flanged connections as per EN 1092-1.
Additional Details:
- The NBR material offers resistance to oils and fuels, making it ideal for industrial and marine environments.
- The rotating flanges facilitate easier installation and alignment within piping systems.
