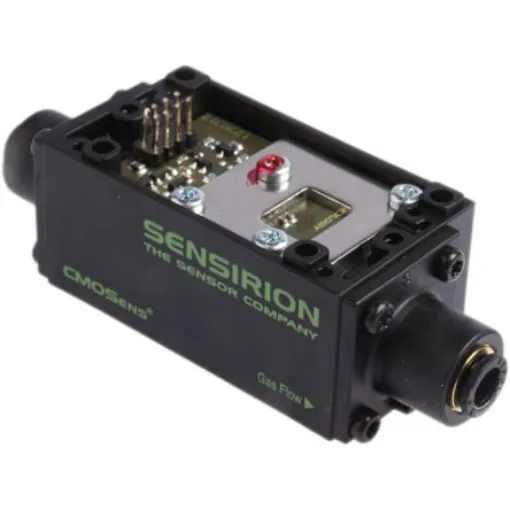

Sensirion SFM4100 Series Digital Mass Flow Meter for Gas, 0 slm Min, 20 slm Max - SFM4100 Air

Sensirion FlowmeterThe Sensirion SFM4100 series low-pressure drop flowmeter measures a gas flow rate of 0slm to 20slm. This low-pressure drop, the digital tool is based on Sensirion’s patented CMOSens sensor technology that combines the sensor element, signal processing and digital calibration circuitry on a single microchip. The Sensirion SFM4100 series is designed to measure the flow rate of air and non-aggressive gases. It is intended for high volume OEM applications. The device has an excellent accuracy over a large dynamic range and the flow signal is internally linearized and temperature compensated. It has an operating supply of 5VDC to 9VDC.Features and BenefitsPipe diameter range is 15.35 mm Connection type is :2-wire I2C Maximum operating pressure is 10bar Maximum operating temperature is 80°C Typical accuracy ±3% of measured value Operating pressure 0 to 6 bar gauge Flow connections Legris CarStick 6mmApplicationsMedical (e. G. respiratory care, anaesthesia) Analytical instruments Leak testing Process automation
