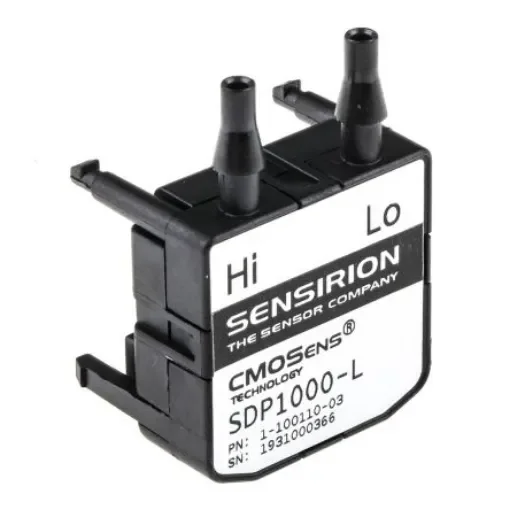

Sensirion SDP1000 Series Pressure Sensor, -20Pa Min, 500Pa Max, Analogue Output, Differential Reading - SDP1000-L

SDP1000/SDP2000 Low Range Differential Pressure Sensors. Sensirion ‘s SDP1000/SDP2000 series of low range differential pressure sensors for air and other non-aggressive gases provide fast and reliable measurement with excellent stability. The small and cost-effective design makes them an ideal match for price-sensitive solutions, e.g. in medical and HVAC applications. Each differential pressure sensor is individually calibrated and temperature compensated. Low Differential Pressure Sensors with fast response time. The SDP1108 and SDP2208 devices ( ; 123-7134 123-7134 and ; 123-7135 123-7135 ) feature a reduced response time of 8ms optimised for medical ventilation applications. 5V dc supply operation 0.25 to 4.0V analogue output Zero offset and excellent long term stability Insensitive to the mounting orientation
