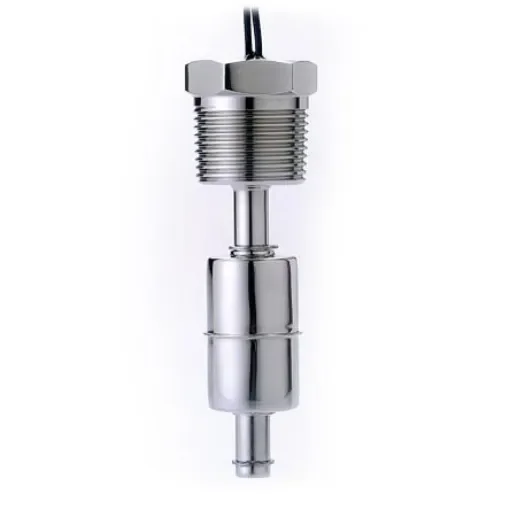

Sensata Cynergy3 SSV66A-34N Series Vertical Stainless Steel Float Switch, Float, 1m Cable, NO/NC - SSV66A813E34N183

Device Type = Float
Mounting Type = Vertical
Switch Output = NO/NC
Body Material = Stainless Steel
Cable Length = 1m
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +120°C
Maximum Current = 2.5 A
Maximum Pressure = 10bar
Series = SSV66A-34N

The Cable entry point must NOT under any circumstances be submerged. On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside. On the vertical type the mounting thread and cable entry must be above the highest level of the liquid. SSV66 Series Stainless Steel Float Switch. The SSV66 series of float switches provide high, low or high and low level monitoring for 45 gallon drums, these float switches do not require access to the inside of the drum as they can be fitted from the outside of the drum through the 3/4" NPT bung hole. Suitable for a 45 Gallon drum hi/lo level switching External mount via 3/4" NPT N/O or N/C switching action Fits standard 3/4" NPT bung holes Flying lead or 4 pin M12 connection
