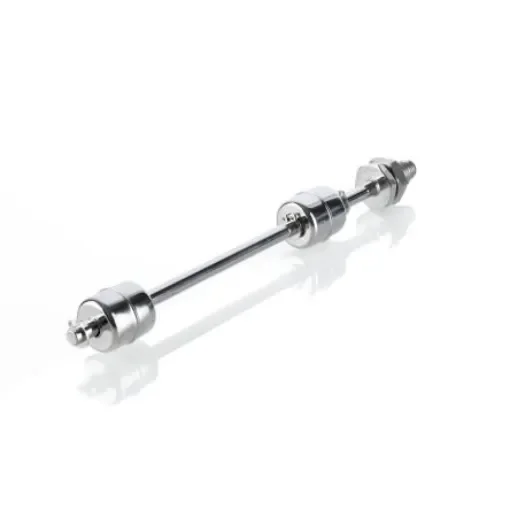

Sensata Cynergy3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, NO/NC, 250V ac Max, 120V dc Max - SSF67B50B200PM12

Device Type = Float
Mounting Type = Vertical
Switch Output = NO/NC
Body Material = Stainless Steel
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +135°C
Maximum AC Voltage = 250V
Maximum DC Voltage = 120V
Maximum Current = 600 mA
Maximum Pressure = 10bar
Gasket Material = Nitrile
Series = SSF67PM12

SSF67PM12 Series Level Float. These SSF67 series floats from Cynergy 3 have been designed to provide different switching options with a longer reach float. The float is made with stainless steel 316L making it suitable to use with aggressive liquids and in applications where hygiene is an important consideration. The float will provide an indication for high and low levels which can be used for alarms and control systems. Single or dual switching levels M16 mounting thread
