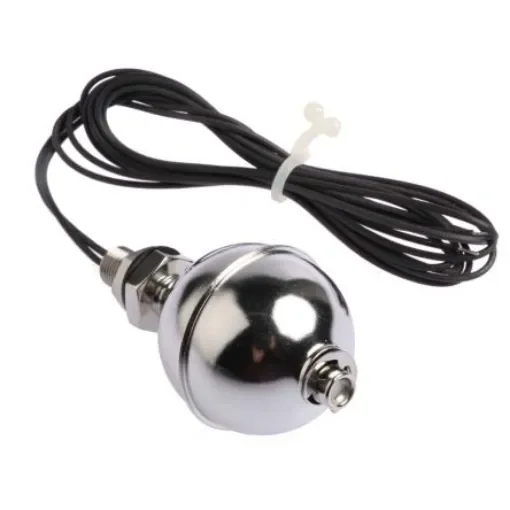

Sensata Cynergy3 SSF28 Series Vertical Stainless Steel Float Switch, Float, 350mm Cable, Direct Load, 300V ac Max, 300V - SSF28X100

Device Type = Float
Mounting Type = Vertical
Switch Output = Direct Load
Body Material = Stainless Steel
Cable Length = 350mm
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +120°C
Maximum AC Voltage = 300V
Maximum DC Voltage = 300V
Maximum Current = 500 mA
Maximum Pressure = 40bar
Series = SSF28
Current Rating = 500 mA

Cynergy3 Float SwitchThe Cynergy3 SSF28 series float switch is a vertical mount type and has direct load output. This float switch has a stainless steel 316L body. It has a maximum operating pressure of 40bar. The switch is mounted on the top or bottom of the tank, so fitting requires access to the inside of the tank. The switch action may be reversed by removing the float, inverting it and then refitting it to the stem. Warning The cable entry point must not under any circumstances be submerged The horizontal switches should be fitted through the wall of a tank so that the cable is on the outside The vertical type mounting thread and cable entry must be above the highest level of the liquidFeatures and BenefitsMinimum fluid SG is 0.7 Maximum switching power 50VA Mounting style is internal Cable length is standard 100cm Mounting thread is 1/8in BSP Cable size is 17/0.10 - AWG22 Reversible switching action (N/O or N/C) XLPE cable 350mm Mounting wall thickness is 10mm Operating temperature ranges between -10°C and 120°C Maximum switching power is 25VACertificationsISO9001
