Sensata Cynergy3 SSF26 Series Vertical Stainless Steel 316L Float Switch, Float, 1m Cable, SPNO, 300V ac Max, 300V dc - SSF26X100

Device Type = Float
Mounting Type = Vertical
Switch Output = SPNO
Body Material = Stainless Steel 316L
Cable Length = 1m
Maximum Operating Temperature = +200°C
Maximum AC Voltage = 300V
Maximum DC Voltage = 300V
Maximum Current = 500 mA
Maximum Pressure = 10bar
Series = SSF26
Current Rating = 500 mA

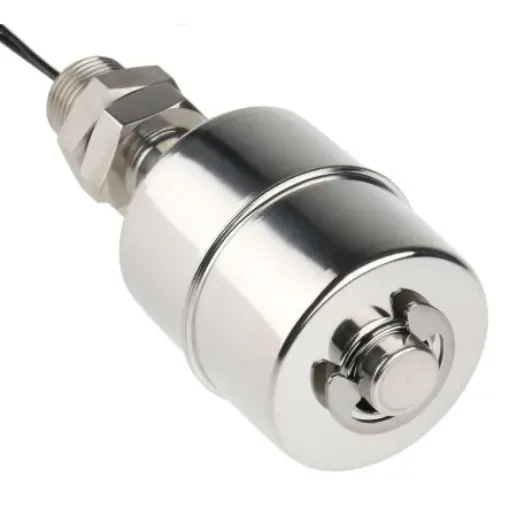

Cynergy3 Float SwitchThe Cynergy3 SSF26 series float switch is a vertical mount type and has SPNO output configuration. This float switch has a stainless steel 316L body. It has a maximum operating pressure of 10bar. The switch is mounting on the top or the bottom of the tank from the inside. Hence, it requires access to the inside of the tank. The switch action may be reversed by removing the float, inverting it and then refitting it to the stem. Warning: The cable entry point must not under any circumstances be submerged The horizontal switches should be fitted through the wall of a tank so that the cable is on the outside The vertical type mounting thread and cable entry must be above the highest level of the liquidFeatures and BenefitsMinimum fluid SG is 0.65 Maximum switching power 50VA Cable length is standard 1m Mounting thread is 3/8in BSP User configurable N/O (make on the rise) or N/C (make on fall) Cable size is 17/0.10 - AWG22 Maximum operating temperature is 200°C Short reach, miniature switchCertificationsISO 9001
