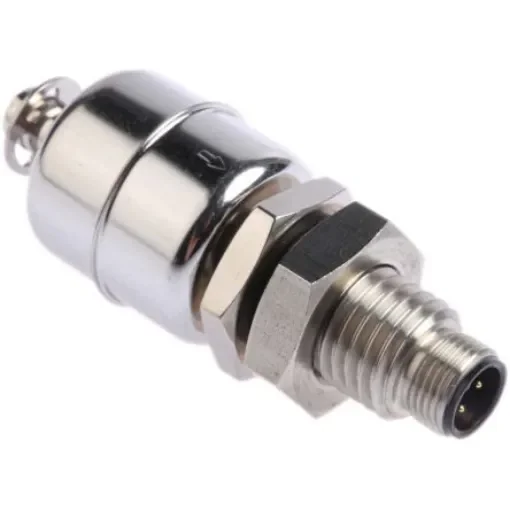

Sensata Cynergy3 SSF23 Series Vertical Stainless Steel Float Switch, Float, NO, 300V ac Max, 300V dc Max - SSF23XPM12

Maximum Current = 500 mA

Cynergy3 Float SwitchThe Cynergy3 SSF23 series float switch is a vertical mount type and has NO output configuration. This float switch has a stainless steel 316 body. It has a maximum operating pressure of 10bar. The switch is mounting on the top or the bottom of the tank from the inside. Hence, it requires access to the inside of the tank. The switch action may be reversed by removing the float, inverting it and then refitting it to the stem.Features and BenefitsMinimum fluid SG is 0.8 Maximum switching power 50VA Cable length is standard 100cm Mounting thread is M16 Lead out: M12 connection Cable size is 17/0.10 - AWG22 Maximum operating temperature is 120°C Float SG 0.7CertificationsISO 9001
