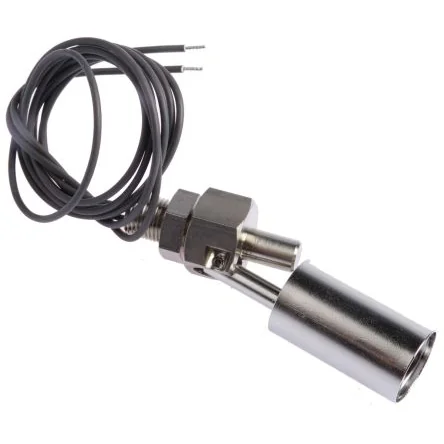

Sensata Cynergy3 SSF213 Series Horizontal Stainless Steel Float Switch, Float, 500mm Cable, NO/NC, 24V ac Max, 24V dc - SSF213T050

Cynergy3 Float SwitchThe Cynergy3 SSF213 series float switch is horizontal mount type and has NO/NC output configuration. This float switch has a stainless steel 304 body. It has a maximum operating pressure of 5bar. The switch is designed to be fitted internally on the side of the tank, as such it requires access to the inside of the tank. The total length inside the tank is 54.5mm. The switch action can be reversed by mounting the device with the float able to move upwards away from the body, instead of the more normal downwards direction.Features and BenefitsMinimum fluid SG is 0.8 Maximum switching power 1VA Mounting style is internal Cable length is standard 50cm Mounting thread is 1/8in BSP Cable size is 17/0.10 - AWG22 User configurable N/O or N/C operation by rotating through 180° Maximum operating temperature is 120°C Short reach, miniature switchCertificationsISO9001
