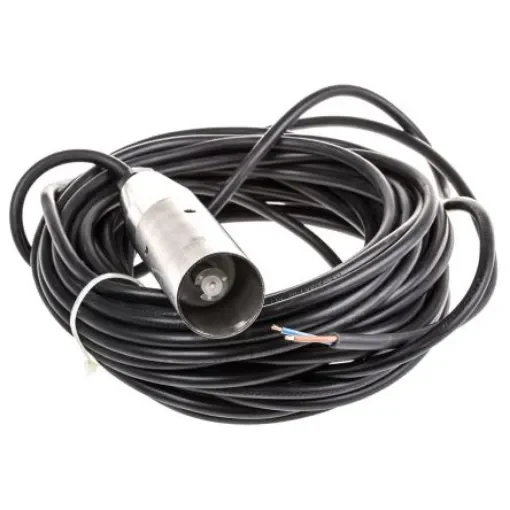

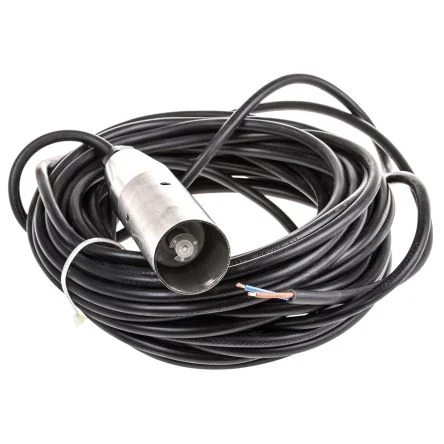

Sensata Cynergy3 SLP Series Vertical Stainless Steel Float Switch, Float, 15m Cable, Direct Load, 250V ac Max, 250V dc - SLP4AP15

Device Type = Float
Mounting Type = Vertical
Switch Output = Direct Load
Body Material = Stainless Steel
Cable Length = 15m
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +55°C
Maximum AC Voltage = 250V
Maximum DC Voltage = 250V
Maximum Current = 600 mA
Maximum Pressure = 5bar
Series = SLP
Current Rating = 600 mA

Cynergy3 Switch Level ProbeThe Cynergy3 SLP series switch level probe is a vertical mount type and has direct load output. This level switch probe has a stainless steel body. It has a maximum operating pressure of 5bar. The switch is high tech device designed to be suspended into the liquid by its cable. It can be configured to give make or break action on either rise or fall of liquid level by removing the protective Shield and reversing the float orientation. The switching level can be adjusted by changing the cable length. The reed switch contact is suitable for switching signal levels, up to 250V. The main uses for this probe are in level indication for narrow boreholes or applications with restricted space and also as a signal switch for reservoir high or low-level monitoring.Features and BenefitsMinimum fluid SG is 0.8 Maximum switching power 25VA Cable length is standard 15m Cable type is PVC sheathed Maximum operating temperature is 55°CSubmersible probe Low space requirement This switch is cable mounted Single switch point configurable for N/O or N/C contacts to operate on either rise or fall of a level no power requirementCertificationsISO9001
