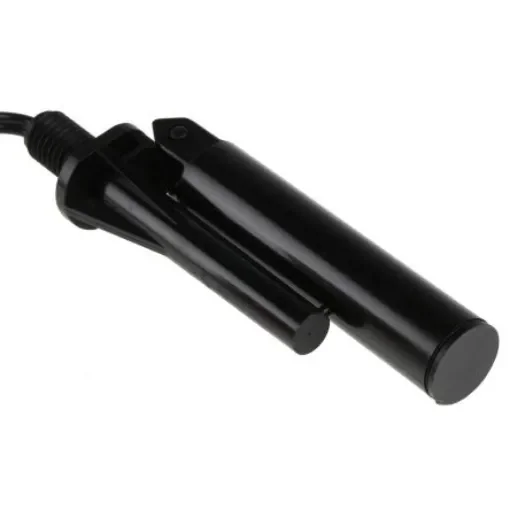

Sensata Cynergy3 RSF30 Series Horizontal Nylon Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc Max - RSF33W100RC

Cynergy3 Float SwitchThe Cynergy3 RSF30 series float switch is horizontal mount and has NO/NC output configuration. This float switch has a nylon body. This is higher power side entry, internally fitted switch. It is used for directly switching small loads of less than 100VA. The fitting of these switches requires access to the inside of the tank. Side mounting switches consisting of a reed switch and pivoted actuator magnet encapsulated in a waterproof housing. The user can even reverse the switch action by rotating the device through 180°. Note: Suitable for signal switching and use with transistorised input/ low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e. G. filament lamps) loads.Features and BenefitsMinimum fluid SG is 0.85 Maximum switching power 100VA Cable length is standard 1m Maximum operating temperature is 75°C This float is use in hot and cold water It has close level (SG=1) 20mm and open level (SG=1) 47mm Lead out: 100cm PVC 16/0.2CertificationsWBS approved WRAS approved UL listed ISO9001
