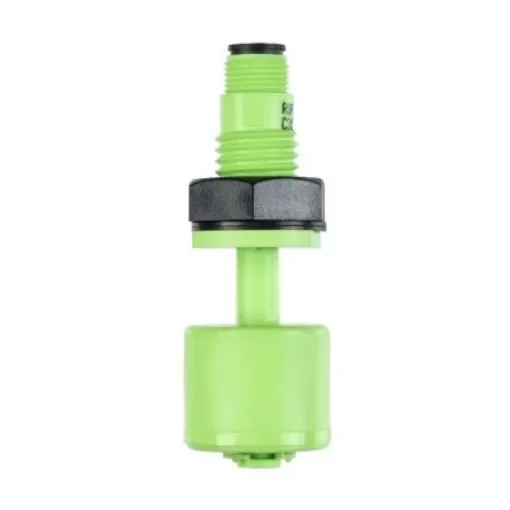

Sensata Cynergy3 RSF150 Series Vertical Polyvinylidene Fluoride Float Switch, Float, NO/NC, 300V ac Max, 300V dc Max - RSF157HFP/RS

Device Type = Float
Mounting Type = Vertical
Switch Output = NO/NC
Body Material = Polyvinylidene Fluoride
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +105°C
Maximum AC Voltage = 300V
Maximum DC Voltage = 300V
Maximum Current = 1 A
Gasket Material = Nitrile
Series = RSF150

Cynergy3 Vertical Float Switch - M12 Connection. A range of Cynergy3 single switching point, vertical fluid level switches. These level switches can be mounted on the top or bottom of the tank but requires access to the tanks interior. Vertical level switches offer long-term reliability and minimal maintenance due to the simplistic construction. The switch can be changed from normally open to normally closed simply by removing and inverting the float. Features and Benefits. Compact Design Available in Nylon, Polypropylene, PPS and PVDF 25VA and 100VA M12 Connector Viton or Nitrile Gasket. Applications. Cynergy3 vertical float switches are suitable for a wide range of applications including Vending machines Printing systems Chemical dosing equipment
