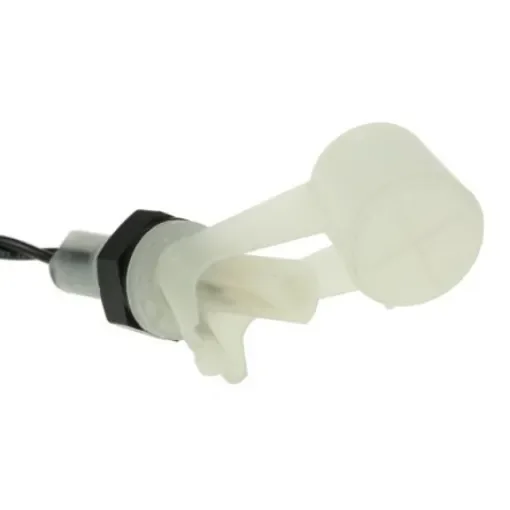

Sensata Cynergy3 RSF10 Series Direct Mounting Polypropylene Float Switch, Float, 500mm Cable, Direct Load, 240V ac Max, - RSF14Y050RF

Device Type = Float
Mounting Type = Direct Mounting
Switch Output = Direct Load
Body Material = Polypropylene
Cable Length = 500mm
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +100°C
Maximum AC Voltage = 240V
Maximum DC Voltage = 120V
Maximum Current = 600 mA
Gasket Material = Nitrile
Series = RSF10
Standards Met = NSF Approved, WRAS

Cynergy3 Float SwitchThe Cynergy3 RFS10 series drop float switch is designed to eliminate the problems associated with limescale build-up around the pivot point of the conventional float switch. It has an electrical rating of 240VAC and 0.6A. This particular series is primarily for applications where a high-level condition has to be monitored. This drop float type switch is used for monitoring upper level and the extended drop float type is used for monitoring the lower level in a tank. Note: Suitable for signal switching and use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e. G. filament lamps) loads. Supplied with: 0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS).Features and BenefitsFloat positioned below the switch in N/C position Switch opens well before liquid level reaches the float pivot Pivot out of liquid High level switch position Flying lead or M12 connector Polypropylene material Fluid SG of 0.70ApplicationsWall kettles Hot vending machinesCertificationsWRAS approved UL approved
