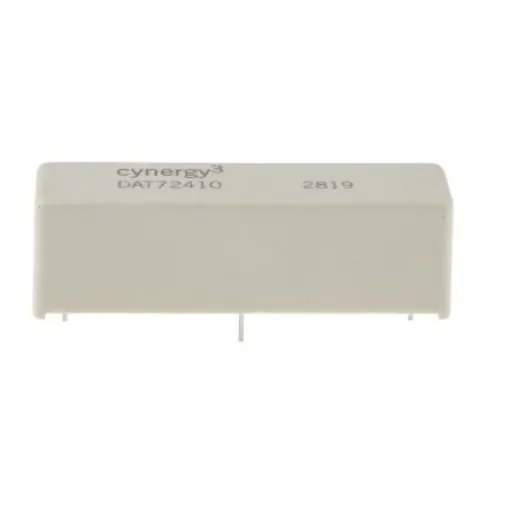

Sensata Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V dc Max, 2 A Max, 780O - DAT72410

Manufacturer: Sensata / Cynergy3

High voltage PCB mount reed relay with 24V DC coil, perfect for reliable switching in test equipment.

Manufacturer part number: DAT72410

Vendor: YACHTNEEDS-RS

€59.13

Qty:

i h

Ships to: France, Monaco

Contact Configuration = SPST
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Maximum Switching Current AC = 2 A
Maximum Switching Current DC = 2 A
Maximum Switching Voltage AC = 7000V
Maximum Switching Voltage DC = 7000V dc
Coil Resistance = 780O
Length = 60mm
Height = 18.5mm
Depth = 15.8mm
Dimensions = 60 x 15.8 x 18.5mm
Isolation Coil To Contact = 17kV ac/dc
Terminal Type = Through HoleCycles

HV Vacuum Encapsulated D Series. These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality. High power switching Through hole PCB ; panel mount or flying lead versions 15kV high isolation versions available Tungsten contacts enable high voltage switching
