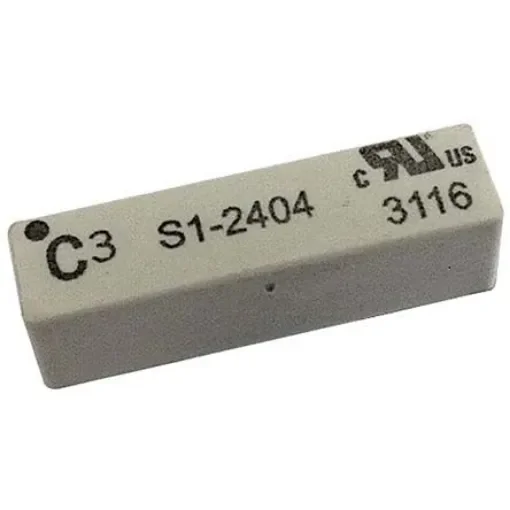

Sensata Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 350V Max, 1 A Max, 1000O - S1-2404/RS

Contact Configuration = SPST
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Maximum Switching Current AC = 1 A
Maximum Switching Current DC = 1 A
Maximum Switching Voltage AC = 300V
Maximum Switching Voltage DC = 350V
Coil Resistance = 1000O
Length = 24.1mm
Height = 8.1mm
Depth = 6.2mm
Dimensions = 24.1 x 6.2 x 8.1mm
Isolation Coil To Contact = 5kV dc
Maximum Operating Temperature = +85°C

ISO9001. Cynergy 3 S1 Series Reed Relay. The S1 series reed relays are miniature high voltage single in line relays. S1 reed relays are designed for applications with limited space. Features and Benefits. Single in-line package 4kV isolation voltage across contacts Contact to coil 5kV isolation voltage Carry current 2.5A Up to 350V switching voltage Central coil pins End contact pins
