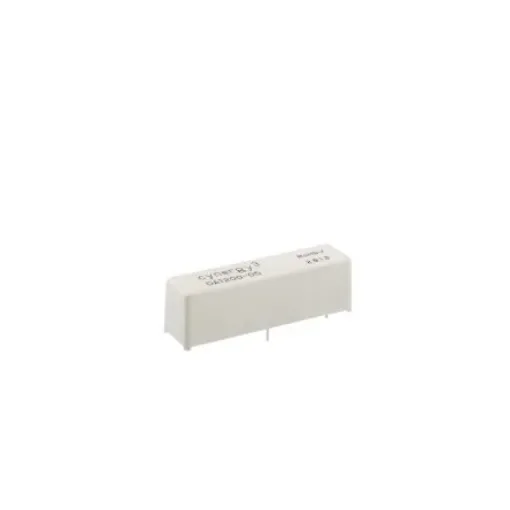

Sensata Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 2500V dc Max, 3 A Max, 780O - DAT200-24

Contact Configuration = SPST
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Maximum Switching Current AC = 3 A
Maximum Switching Current DC = 3 A
Maximum Switching Voltage AC = 2500V ac
Maximum Switching Voltage DC = 2500V dc
Coil Resistance = 780O
Length = 60mm
Height = 18.5mm
Depth = 15.8mm
Dimensions = 60 x 15.8 x 18.5mm
Isolation Coil To Contact = 17kV
Operating Time Including Bounce = 6ms

High Power 200W reed relay. The Cynergy3 D200 series high power reed relays combines 200 W switching capacity with 7 kV isolation across the contacts. This excellent switching performance in D200 series is achieved by the use of high vacuum reed switches with Tungsten contacts making them suitable for applications like test equipment and high voltage power supplies. 200 W switching power 7 kV isolation across contacts Low contact resistance PCB Mount Excellent AC characteristics
