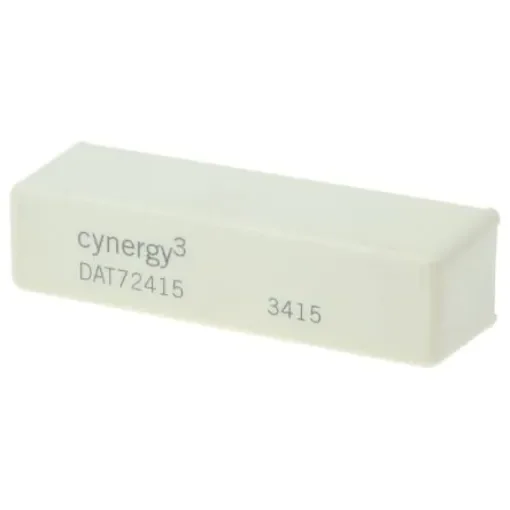

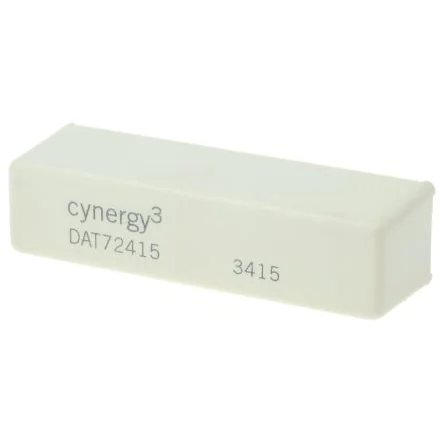

Sensata Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 10000V dc Max, 2 A Max, 350O - DAT72415

Contact Configuration = SPST
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Maximum Switching Current AC = 2 A
Maximum Switching Current DC = 2 A
Maximum Switching Voltage AC = 10000V ac
Maximum Switching Voltage DC = 10000V dc
Coil Resistance = 350O
Length = 60mm
Height = 18.5mm
Depth = 15.8mm
Dimensions = 60 x 15.8 x 18.5mm
Isolation Coil To Contact = 15kV ac/dc
Life = 100000000 (Electrical) Cycles°C

HV Vacuum Encapsulated D Series. These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality. High power switching Through hole PCB ; panel mount or flying lead versions 15kV high isolation versions available Tungsten contacts enable high voltage switching
