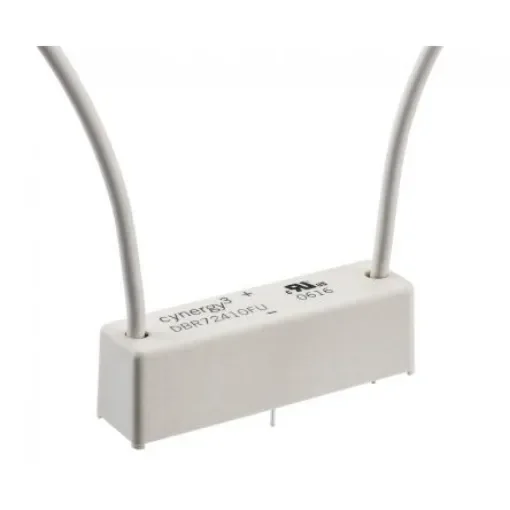

Sensata Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SP-NC, 7000V Max, 2 A Max, 925O - DBT72410FU/RS

Contact Configuration = SP-NC
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Maximum Switching Current AC = 2 A
Maximum Switching Current DC = 2 A
Maximum Switching Voltage AC = 7000V
Maximum Switching Voltage DC = 7000V
Coil Resistance = 925O
Length = 60mm
Height = 18.5mm
Depth = 15.8mm
Dimensions = 60 x 15.8 x 18.5mm
Isolation Coil To Contact = 17kV
Minimum Operating Temperature = -20°C

UL. The rhodium contact relays have low contact resistance, the tungsten contact relays can switch to higher voltages. Cynergy 3 DA (UL) Series Reed Relay. The UL approved reed relays have very high isolation voltages. UL reed relays are ideal for applications that require high reliability, these include cardiac defibrillators, test equipment and high voltage power supplies. Features and Benefits. 10kV isolation Low contact resistance Panel mount or PCB HV connections through Flying Leads, Solder Turret (wire wrap) or 1/4inch Spade Terminals AC characteristics
