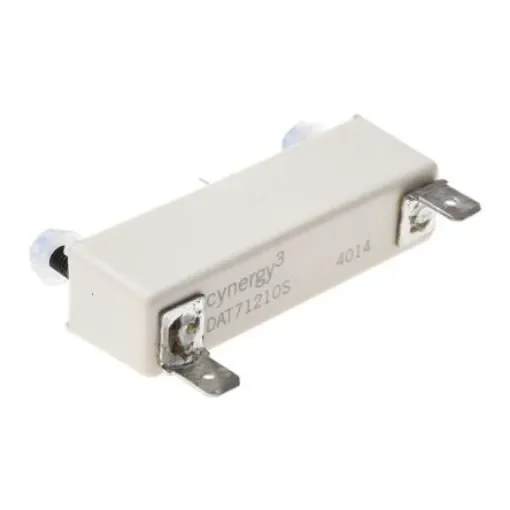

Sensata Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 7000V dc Max, 2 A Max, 150O - DAT71210S

Contact Configuration = SPST
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Maximum Switching Current AC = 2 A
Maximum Switching Current DC = 2 A
Maximum Switching Voltage AC = 7000V ac
Maximum Switching Voltage DC = 7000V dc
Coil Resistance = 150O
Length = 60mm
Height = 24.8mm
Depth = 15.8mm
Dimensions = 60 x 15.8 x 24.8mm
Isolation Coil To Contact = 17kV ac/dc
Life = 1000000 (Electrical)Cycles

Vacuum Encapsulated D Series, Panel Mount. 50W switching 7kVdc or ac peak switching voltage 10kV contact isolation 17kV contact to coil isolation Insulation resistance 10 ;sup>10 ;/sup> ohms Contact resistance 250 mO max Operate time (inc. bounce) 3ms Release time (inc. bounce) 2ms Panel mount with 0.25in. male terminals Suitable for high voltage test equipment and power supplies
