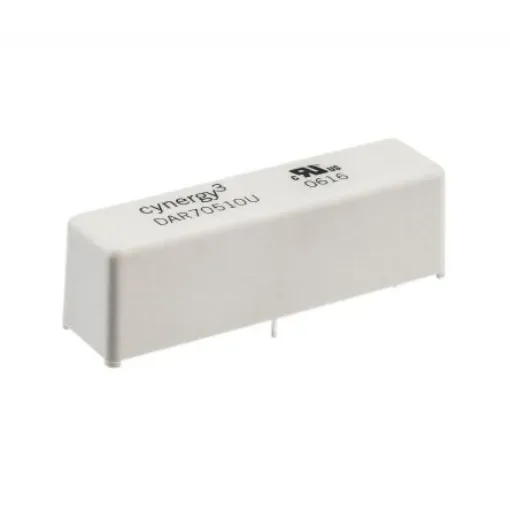

Sensata Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 1000V Max, 3 A Max, 150O - DAR71210U/RS

Contact Configuration = SPST
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Maximum Switching Current AC = 3 A
Maximum Switching Current DC = 3 A
Maximum Switching Voltage AC = 1000V
Maximum Switching Voltage DC = 1000V
Coil Resistance = 150O
Length = 60mm
Height = 18.5mm
Depth = 15.8mm
Dimensions = 60 x 15.8 x 18.5mm
Isolation Coil To Contact = 17kV
Relay Switching Classification = General Purpose Relay°C

UL. The rhodium contact relays have low contact resistance, the tungsten contact relays can switch to higher voltages. Cynergy 3 DA (UL) Series Reed Relay. The UL approved reed relays have very high isolation voltages. UL reed relays are ideal for applications that require high reliability, these include cardiac defibrillators, test equipment and high voltage power supplies. Features and Benefits. 10kV isolation Low contact resistance Panel mount or PCB HV connections through Flying Leads, Solder Turret (wire wrap) or 1/4inch Spade Terminals AC characteristics
