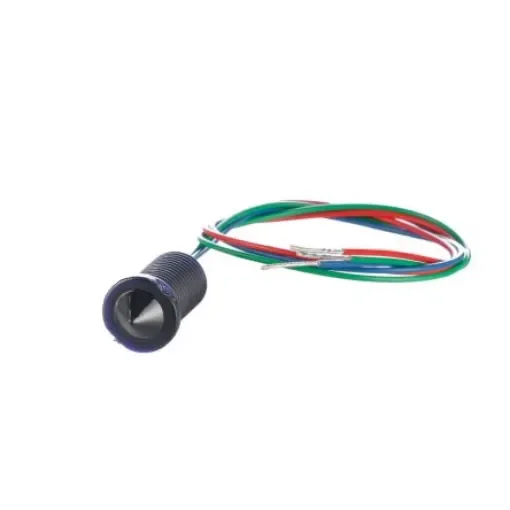

Sensata Cynergy3 OLS5 Series Optical Sensor Level Switch, Transistor Output, Chassis Mount, Polysulfone Body - OLS500D3

Device Type = Optical Sensor
Mounting Type = Chassis Mount
Switch Output = Transistor
Body Material = Polysulfone
Cable Length = 250mm
Minimum Operating Temperature = -25°C
Maximum Operating Temperature = +80°C
Maximum DC Voltage = 15V
Thread Size = M10
Maximum Current = 100 mA
Maximum Pressure = 20bar
Series = OLS5

Cynergy3 Liquid Level SensorThe Cynergy3 liquid level sensor is for single point level detection. This sensor has an infrared emitter and detector aligned within an accurately shaped cone to give good optical coupling when the sensor is in the air. This coupling is greatly reduced when the sensor is immersed in liquid, as the infrared light escapes through the liquid rather than being reflected in the detector. This sensor has a transistor output, so can be configured by the user for particular applications. Its supply voltage ranges between 5VDC and 15VDC. It is used in industries.Features and BenefitsOutput is via TTL compatible push pull output Affordable sensors for general liquid sensing High reliability optical sensing Cable length of 250mm Maximum current of 100mA Internal mount via M10x1 thread High output versions Maximum pressure is 20bar Chassis mountCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
