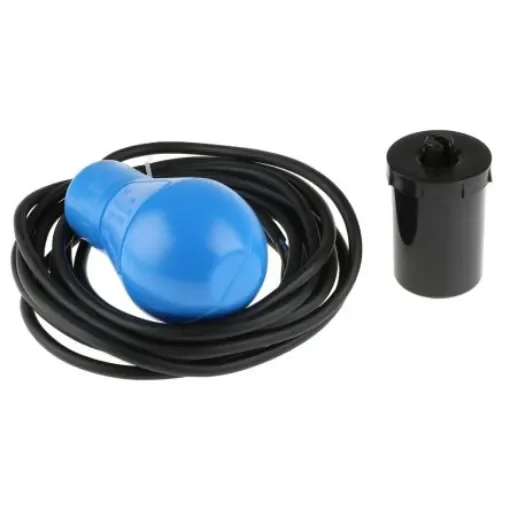

Sensata Cynergy3 LM Series PE Float Switch, Float, 5m Cable, Direct Load, 250V ac Max, 110V dc Max - LM10C

Device Type = Float
Switch Output = Direct Load
Body Material = PE
Cable Length = 5m
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +55°C
Maximum AC Voltage = 250V
Maximum DC Voltage = 110V
Maximum Current = 1 A dc, 4 A ac
Maximum Pressure = 10bar
Series = LM
Standards Met = CE Certified

Cynergy3 Float SwitchThe Cynergy3 LM series float switch is C/O contact form and has direct load output. This float switch has a high-density polyethylene material. It has a cable of length 5m without protective earth and maximum operating pressure of 10bar. The switch rounded body design and floating attitude to prevent the accumulation of solids. on the body. Its compact design makes it ideal for use in confined spaces. This switch is enabled with an additional internal ballast to get the centre of gravity and rotation close to the cable entry point. Besides, the self-cleaning switching element makes the switch insensitive to humidity and condensation and operate in widely fluctuating temperatures. The switch contacts are rated at 10Amp resistive. However, it does not have a protective earth. Note: LM10A and LM10B have a protective earth. However, LM10C does not.Features and BenefitsOperates in turbulent fluids Standard cable covering PVC Depth capacity is 100m Insensitive to humidity and condensation Adjustable counterweight Specific gravity of liquid is 0.6ApplicationsSewer Industrial waste waterCertificationsIP68 rated ISO9001 CE certified
