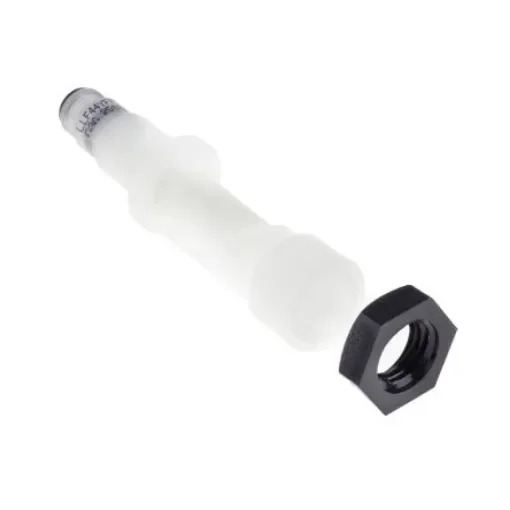

Sensata Cynergy3 LLF40 Series Horizontal Internal Polypropylene Float Switch, Float, SPNO, 240V ac Max, 120V dc Max - LLF44YFP

Device Type = Float
Mounting Type = Horizontal Internal
Switch Output = SPNO
Body Material = Polypropylene
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +100°C
Maximum AC Voltage = 240V
Maximum DC Voltage = 120V
Maximum Current = 600 mA
Gasket Material = Nitrile
Series = LLF40
Current Rating = 0.6 A

Cynergy3 External Low Level Float SwitchThe Cynergy3 internal low-level float switch has a polypropylene body. This device is particularly suitable for detecting low-levels of liquid at the bottom of the tanks and containers and for lower SG liquids. The switch action can be reversed by rotating the device through 180°. Cable sets with M12 plugs are also available.Features and Benefits• Class leading compact design • M12 plug connection • Power capacity is 25VA • Very low level sensingApplications• Commercial washing machines • Evaporator units • Size sensitive applications • Vending machinesCertifications• WRAS
