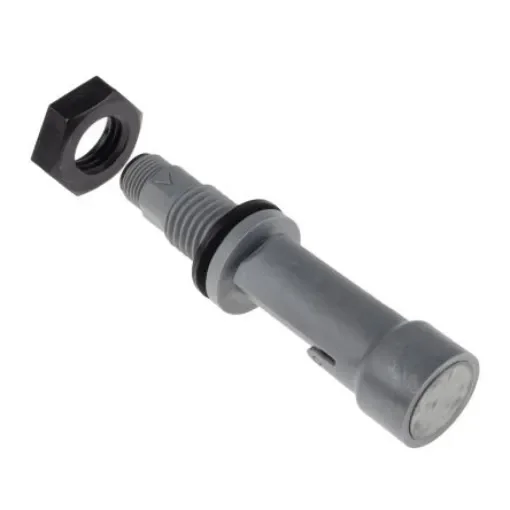

Sensata Cynergy3 LLF40 Series Horizontal Internal Polyphenylene Sulfide Float Switch, Float, SPNO, 300V ac Max, 300V dc - LLF46HFP

Device Type = Float
Mounting Type = Horizontal Internal
Switch Output = SPNO
Body Material = Polyphenylene Sulfide
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +120°C
Maximum AC Voltage = 300V
Maximum DC Voltage = 300V
Maximum Current = 1 A
Gasket Material = Nitrile
Series = LLF40
Current Rating = 1 A

Cynergy3 External Low Level Float SwitchThe Cynergy3 internal low-level float switch has a polyphenylene sulphide body. This device is particularly suitable for detecting low-levels of liquid at the bottom of the tanks and containers and for lower SG liquids. The switch action can be reversed by rotating the device through 180°. Cable sets with M12 plugs are also available.Features and Benefits• Class leading compact design • M12 plug connection • Power capacity is 100VA • Very low level sensingApplications• Commercial washing machines • Evaporator units • Size sensitive applications • Vending machinesCertifications• UL approved • WRAS
