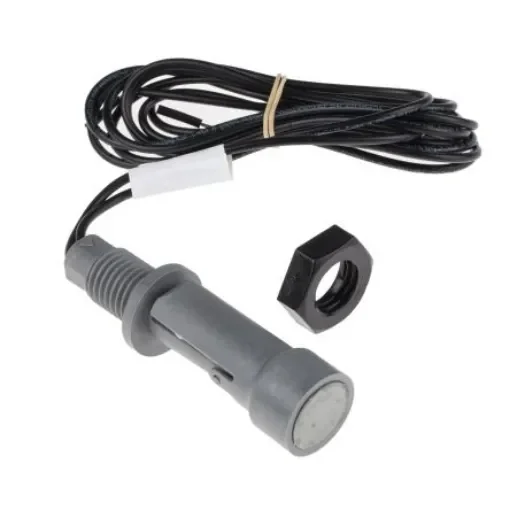

Sensata Cynergy3 LLF40 Series Horizontal Internal Polyphenylene Sulfide Float Switch, 1m Cable, SPNO, 300V ac Max, 300V - LLF46H100RF
Detect low liquid levels efficiently with the Sensata LLF40 Float Switch, designed for various applications.
Manufacturer part number: LLF46H100RF
Mounting Type = Horizontal Internal
Switch Output = SPNO
Body Material = Polyphenylene Sulfide
Cable Length = 1m
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +120°C
Maximum AC Voltage = 300V
Maximum DC Voltage = 300V
Maximum Current = 1 A
Gasket Material = Nitrile
Series = LLF40
Current Rating = 1 A
Cynergy3 External Low Level Float SwitchThe Cynergy3 internal low-level float switch has a polyphenylene sulphide body. This device is particularly suitable for detecting low-levels of liquid at the bottom of the tanks and containers and for lower SG liquids. The switch action can be reversed by rotating the device through 180°.Features and Benefits• Class leading compact design • Flying lead • Power capacity 100VA • Suitable for low specific gravity liquids (0.7 S. G.) • Very low level sensingApplications• Commercial washing machines • Evaporator units • Size sensitive applications • Vending machinesCertifications• UL approved • WRAS
