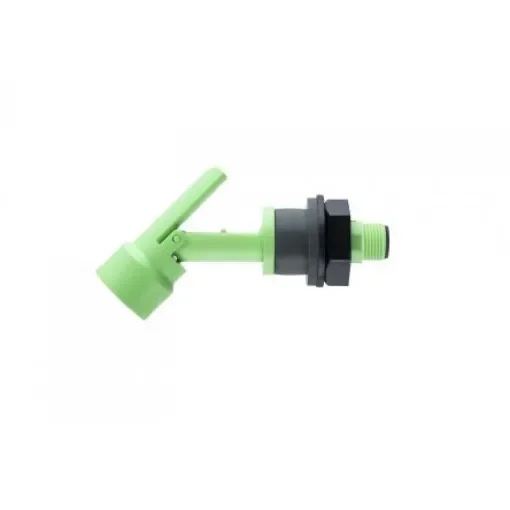

Sensata Cynergy3 LLF 70 Series Horizontal External Polyvinylidene Fluoride Float Switch, Float, SPNO, 300V ac Max, 300V - LLF77HVP

Device Type = Float
Mounting Type = Horizontal External
Switch Output = SPNO
Body Material = Polyvinylidene Fluoride
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +105°C
Maximum AC Voltage = 300V
Maximum DC Voltage = 300V
Maximum Current = 1 A
Gasket Material = Viton
Series = LLF 70
Standards Met = UL

The LLF70 series is designed for fitting through a tank wall from the outside, where access to the inside for fitting is not possible. These devices are particularly suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids. Typical applications include vending machines, commercial dish washers and auxiliary tanks on vehicles. These are manufactured in a variety of plastics, with a choice of gasket materials to suit most commonly used liquids. The switch action may be reversed by mounting the device with the float able to move up wards away from the body, instead of the more normal down wards direction.Suitable for low specific gravity liquids (0.7 S.G.) Very low level sensing Class leading compact design Compression seal fitting Flying Lead or M12 plug connection
