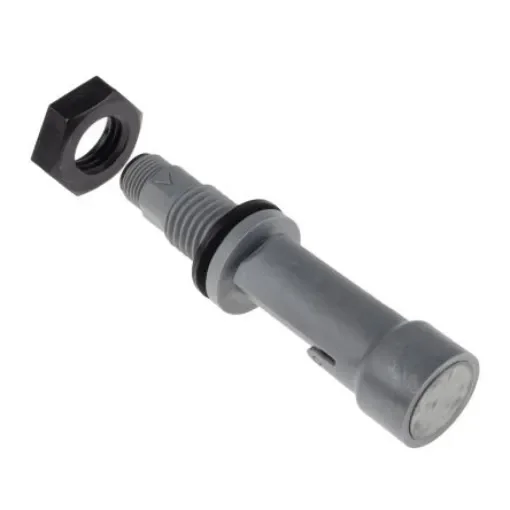

Sensata Cynergy3 LLF 70 Series Horizontal External Polyphenylene Sulfide Float Switch, Float, SPNO, 240V ac Max, 120V - LLF76YNP

Device Type = Float
Mounting Type = Horizontal External
Switch Output = SPNO
Body Material = Polyphenylene Sulfide
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +120°C
Maximum AC Voltage = 240V
Maximum DC Voltage = 120V
Maximum Current = 600 mA
Gasket Material = Nitrile
Series = LLF 70
Current Rating = 0.6 A

Cynergy3 External Low Level Float SwitchThe Cynergy3 external low-level float switch has a polyphenylene sulphide body. This device is particularly suitable for detecting low-levels of liquids in the bottom of the tanks, containers and lower SG liquids. The switch action may be reversed by mounting the device with the float to move upwards away from the body, instead of the more normal downwards direction.Features and Benefits• Class leading compact design • Compression seal fitting • M12 plug connection • Power capacity 25VA • Suitable for low specific gravity liquids (0.7 S. G.) • Very low level sensingApplications• Auxiliary tanks on vehicles • Commercial dish washers • Vending machinesCertifications• UL approved • WRAS
