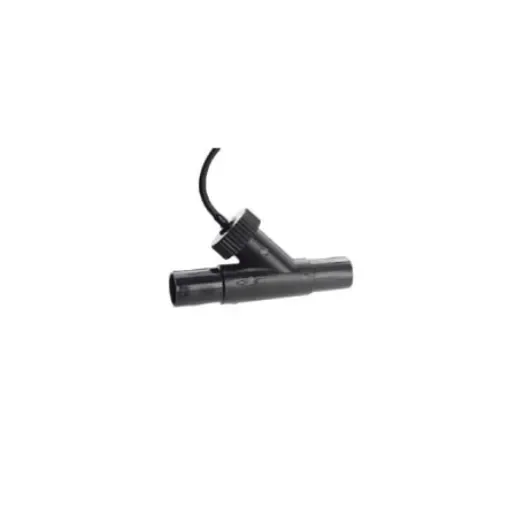

Sensata Cynergy3 FS Series Flow Controller, 3.75 L/min, Relay Output, 240 V, 22 mm Pipe - FS22A

Maximum Flow Rate = 3.75 L/min
Electrical Connection = Cable
Control Output = Relay
Supply Voltage = 240 V
Display Screen = No
Pipe Diameter Range = 22 mm
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +85°C
Series = FS

Not to be used in any chlorinated liquids. Normally Open Flow Switch. Flow switch series from Cynergy3. These flow switches are reed switch based and can monitor the flow of liquids up to 10bar in pressure. This series of flow switches can be mounted horizontally or vertically and have minimal flow restriction. Flow switches are ideally used in water but can be used in weak acidic liquids. Mainly for use with hot or cold water, however they may also be used with a wide range of chemicals Pressure rating 150psi maximum Switching current 1A dc or ac (rms) Switching voltage 240V dc or ac (rms) Switching power 15W (15VA) resistive loads Operating temperature 85°C maximum Vertical or horizontal mounting Standard compression or push fit fittings WRAS approved for use in cold water Complete with a 250mm lead
