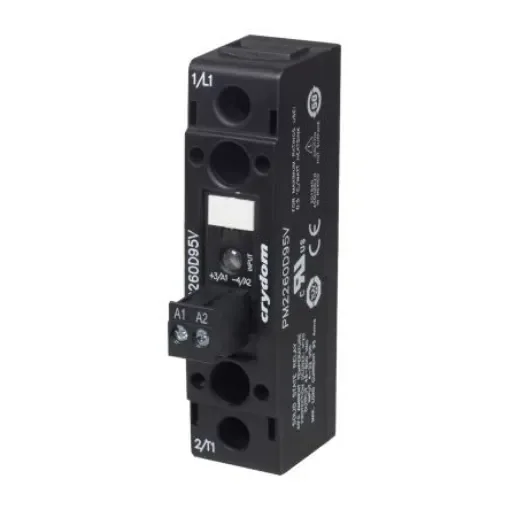

Sensata Crydom Solid State Relay, 95 A Load, Panel Mount, 600 V rms Load, 32 V dc Control - PM2260D95V

C-UL-US listed AC output devices are TUV certified to EN 62314 Standard CE compliant to the low voltage and EMC Directives and to RoHS and China RoHS Directives. For the Thermal Pad for use with the panel mount NOVA22 see RS stock number 9107343. Panel Mount NOVA22 PM22 Series Solid State Relays. The NOVA22 are panel mounted and DIN rail solid state relays that offer you a greater power density of up to 90Amps plus more connection options that any comparable solid state relay available. The DR22 series are Din rail with the panel mount option being the PM22 series. NOVA22 relays are unique to the market giving you a much broader temperature range of -40 to +80 ºC including a higher resistance to surge current of 1290Amps x 20 msec. High I2t models allow the use of the solid state relay in conjunction with circuit breakers instead of fuses, this gives you short circuit protection Type 2 coordination per IEC60947-4-1. The NOVA22 contactor configuration models include a plug in connector for the control input and is available in either screw or spring terminal. DR22 series are available in either AC output voltage of 18 to 600 VAC or a DC output voltage of 1 to 200 VDC. The NOVA22 DR22 solid state relays are the only 22.5mm DIN rail mount relays with 35 Amps @ 40 ºC within the market. 22.5mm wide package Output rating up to 95A @ 600 VAC AC or DC control 4 to 32VDC, 90 to 280VAC/DC or 18 to 52VAC/DC input control options Relay or contactor configuration Elevator screw for easy connection of ring terminals Overvoltage protection Zero voltage or instantaneous turn on output 100kA short circuit current rating Maximum I2t value of 8320 8320 A2S Integral heatsink IP20 touch safe housing BDC substrate for superior thermal performance LED indicator. PM22 Series Panel Mounted
