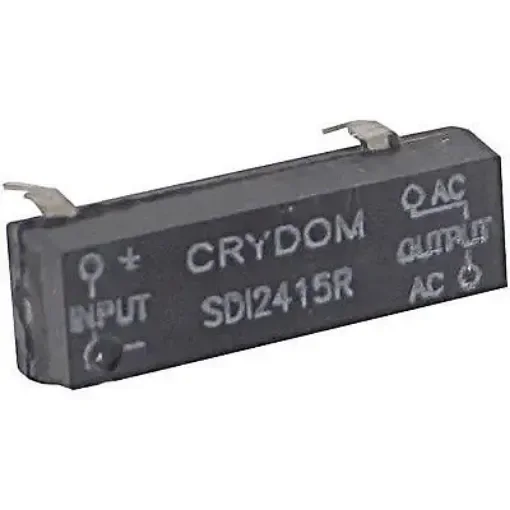

Sensata Crydom Solid State Relay, 1.5 A Load, PCB Mount, 280 V rms Load - SDI2415R
The Sensata Crydom Solid State Relay features a 1.5A load capacity and PCB mount design for efficient switching.
Manufacturer part number: SDI2415R
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Maximum Load Current = 1.5 A
Mounting Type = PCB Mount
Maximum Load Voltage = 280 V rms
Minimum Load Voltage = 12 V rms
Switching Type = Instantaneous
Minimum Load Current = 0.025 A rms
Contact Configuration = SPST
Output Device = SCR
Package Style = DIP
Maximum Turn On Time = 1/2 cycleVrms
Dimensions = 21.6 x 6.7 x 4.8mm
Height = 4.8mm
UL, TUV. SDV ; SDI Series. DIL package for high density PCB mounting Zero-Cross switching where stated otherwise Random-fire SCR output Input-Output Capacitance 2pF max Isolation voltage 3.75kV Dimensions (WxHxD) 6.7x8.6x21.6mm Operating temperature range -30 to +80°C Choice of voltage or current control
