Maximum Load Current = 50 A
Mounting Type = Panel Mount
Maximum Load Voltage = 280 V ac
Minimum Load Voltage = 90 V ac
Maximum Control Voltage = 10 V dc
Switching Type = Burst Fire Control, Phase Angle
Control Voltage Range = 0
10 V dc
Range = NOVA22
Number of Poles = 1
Terminal Type = Screw
Relay Type = Control Relay
Maximum Turn On Time = 20 cyclesV ac
Dimensions = 22.5 x 53.1 x 91.9mm
Minimum Operating Temperature = -25°C

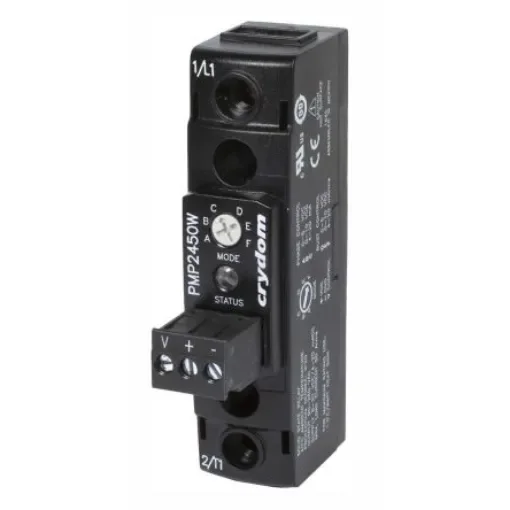

Crydom PMP Series Proportional Controllers. Crydom PMP series are fully configurable panel mount proportional control relays with micro controller based technology designed to provide control of the power delivered to single phase loads. PMP series SSRs vary the output power in proportion to an analogue control input, which can be one of 3 signal types: 0 V dc to 5 V dc, 0 V dc to 10 V dc or 4 mA to 20 mA. The output can be controlled by 2 different methods, selectable on the unit: Phase Angle Control, and Burst Fire Control (with Distributive Zero Cross). These proportional controllers are ideal for a wide range of applications that require control of the load power, such as lamp dimming and resistive heating control. Features and Benefits. Selectable Operation Mode: Phase Angle or Burst Fire control. LED multi function status indicator. Contactor configuration with ""Elevator"" screw terminals. 50/60 Hz Adaptive Operational Frequency function. cULus, IEC Rated, CE and RoHS Compliant
