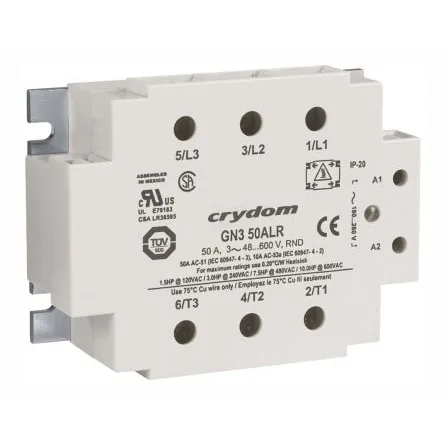

Sensata Crydom GN3 Series Solid State Relay, 25 A rms Load, Panel Mount, 600 V ac Load, 32 V dc Control - GN325DSZ

UL, CSA, TUV. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet. GN3 Series Three Phase Relays. The GN3 series consists of three solid-state outputs controlled by one input, and functions similar to any standard solid-state relay. When the input signal is applied, each output conducts load current for it's respective phase in the network. Features and Benefits. DBC substrate for superior thermal performance Epoxy-free design reduces internal component stress Back-to-Back dual SCR output for heavy industrial loads Zero crossing output Snubber circuit 100k-cycle UL508 endurance rating for enhanced reliability No external transient protection required (internal TVS) EMC Compliant for reliable operation in harsh environments
