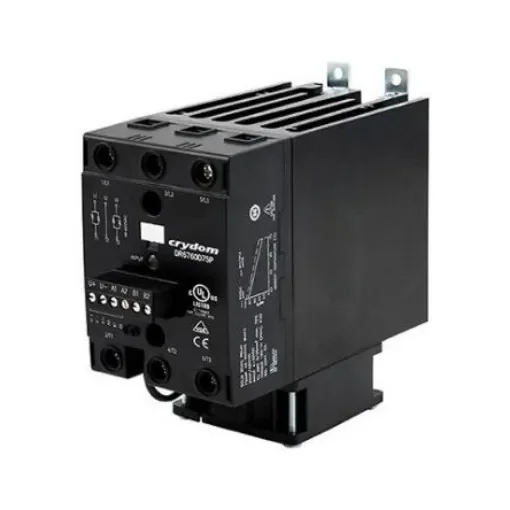

Sensata Crydom DR67 Series Solid State Relay, 75 A Load, DIN Rail Mount, 600 V ac Load - DR6760D75RP
High-performance 75A solid state relay with compact DIN rail design for efficient operation.
Manufacturer part number: DR6760D75RP
Maximum Load Current = 75 A
Mounting Type = DIN Rail
Maximum Load Voltage = 600 V ac
Minimum Load Voltage = 48 V ac
Switching Type = Instantaneous Turn-On
Minimum Load Current = 150 mA rms
Series = DR67
The Sensata / Crydom DR67 is a compact 3-phase solid state relay in a DIN rail 67.5mm wide package. It has an integrated fan which allows the product to achieve very high ratings while maintaining a compact design. It has 48 to 600 VAC operational voltage and 75 A rated load current.IP20 touch-safe housing AC or DC control cULus listed and VDE approved
