Sefram DAS60 Data Acquisition System, 6 Channel(s), Ethernet, USB, 1Msps, 14 bit - DAS60Z

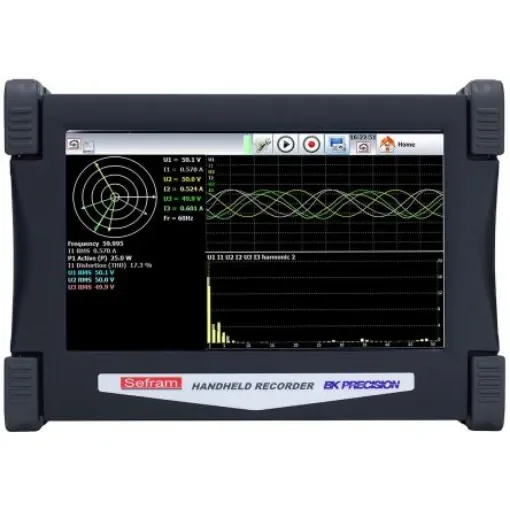

The Sefram DAS60 is a portable data acquisition system with 6 channels for high-speed recording.
Manufacturer part number: DAS60Z
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
The new Data Acquisition Solution DAS60 is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 6 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs, more than 9 hours autonomy, a 64GB memory, the DAS60 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase and Three-Phase network up to 400Hz.6 analogue isolated channels Universal input DC, AC+DC RMS voltage measurement Frequency, counter Temperature: thermocouple, Pt100/Pt1000 (2 separate channels) Network and power analysis function (up to 400Hz) with trigger on parameters Inrush current measurement PWM measurement 64 GB internal hard disk 32 Mword memory
