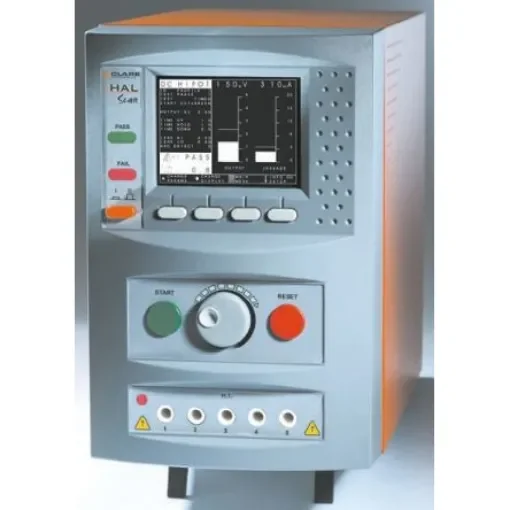

Seaward Clare H101 Hipot Tester, 250V Min, 5000 V ac, 6000V dc Max, 999.9MO Max - 450A920

Model Number p = H101
Tester Type = Hipot Tester
Minimum Test Voltage = 250V
Maximum Insulation Resistance Measurement = 999.9MO
Display Type = Analogue
Test Current = 20mA
Power Source = Mains
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +40°C
Height = 300mm

Seaward Clare Insulation and Ground Bond TesterThe Seaward Clare H101 HAL series 1kV insulation and ground bond tester offers an outstanding level of flexibility and functionality to dramatically improve the quality and productivity of production line safety testing. It has a range of different tests and functionality, which provides a solution for any production line testing requirement from low volume manual testing through to high volume automated test programmes. A choice of automatic, manual or direct PC modes offers maximum flexibility for use and control of the tester. Fully isolated HT outputs for safe, high current flash testing complying with electrical safety testing standard. Supplied with HT probe (Yellow), HT clip lead, Guard Plug, UK mains lead.Features and BenefitsEarth Bond Test AC / DC Flash / Hipot Test Insulation Resistance Scanner Arc Detection Visual Alarm Audible Alarm Storage of test results Predefined and custom test sequences PLC interface Fast automatic production testing using sequence capability Internal storage of up to 6000 test results and test sequences Graphical representation of test voltage and pass fail limits on a 320 x 240 VGA graphical LCD Operating Temperature between 0°C and 40°C Single-button operation with simple PASS/FAIL indication Compatible with the BrainCell equipment tagging system Provides bar-code read facility for control of inventory Prints product ID and test reports, when connected to a printer Connects to external, high visibility status beaconsApplicationsCables Transformers Motors/generators Circuit breakers BushingsCertificationsEN50191 IEC/EN 60990
