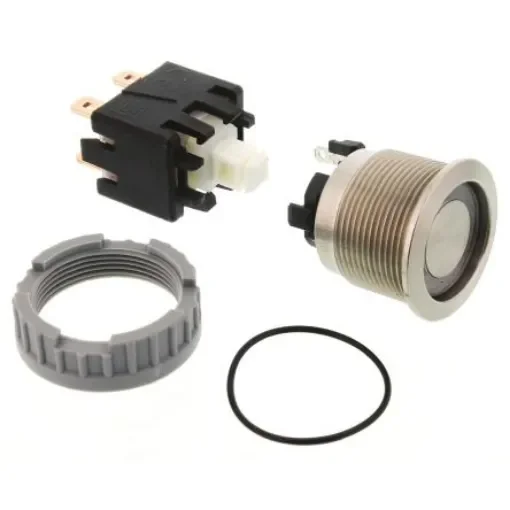

Schurter MSM LA 22 Series Illuminated Push Button Switch, Latching, Panel Mount, 22mm Cutout, DPDT, Red LED, 125/250V - 1241.6834.1121000

Switch Operation = Latching
Illuminated = Yes
Panel Cut Out Diameter = 22mm
Mounting Type = Panel Mount
Contact Configuration = DPDT
Voltage Rating = 125/250V ac
Push Button Style = Round
LED Colour = Red
IP Rating = IP64 (Front); IP00 (Rear)
Contact Current Rating = 12 A @ 250 V ac
Manufacturer Part No. = 1241.6834.1121000

ENEC, UL, CSA. Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation. Anti-Vandal M19 ; M22 Push Button Switches - MSM LA Series (Latching). Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102) IP64 sealed stainless steel housing and latching (push-on, push-off) actuator Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state Quick connect terminals Long life - up to 150,000 mechanical operations Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs Switching status optically visible - illuminated viewing angle of 180°
