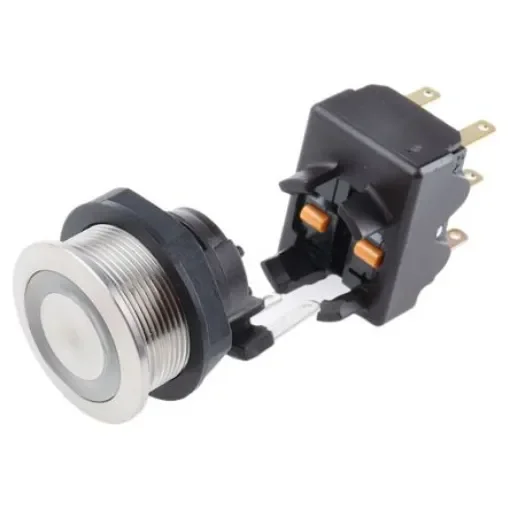

Schurter MSM DP 19 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Red LED, 250V ac, - 1241.6924.1121000

ENEC, UL, CSA. Anti-Vandal M19 ; M22 Push Button Switches - MSM Series (Double Pole). Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102) Stainless steel housing and momentary actuator - IP40 DPDT microswitch Designed with two separate switching contacts - can be configured as normally open, normally closed or change-over Can be used in applications where an additional second contact is required, e.g. emergency switching Actuator with 5N operating force and 1mm travel - protrudes 1.7mm above panel Quick connect terminals Long life - up to 1,500,000 mechanical operations Non illuminated or red, green or blue LED ring illuminated (requires 24Vdc supply ; series resistor) versions available in 19 or 22mm Ø panel cut outs
