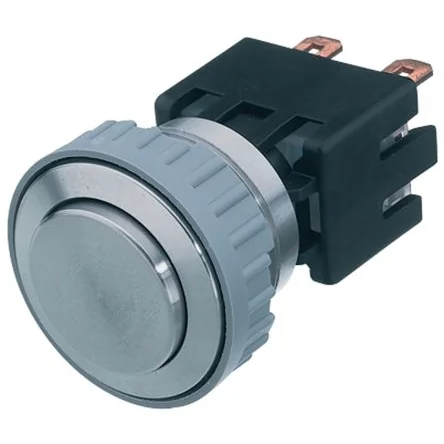

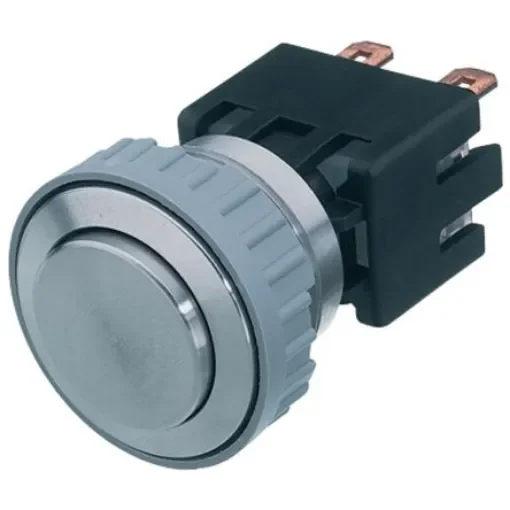

Schurter MSM 22 Series Illuminated Push Button Switch, Latching, Panel Mount, 19.1mm Cutout, SPST, 30 V dc, 250V ac, - 1241.6831.1110000
The Schurter MSM 22 Series is a durable illuminated push button switch with a latching mechanism.
Manufacturer part number: 1241.6831.1110000
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Switch Operation = Latching
Illuminated = Yes
Panel Cut Out Diameter = 19.1mm
Mounting Type = Panel Mount
Push Button Colour = Silver
Contact Configuration = SPST
Voltage Rating = 30 V dc, 250V ac
Push Button Style = Round
IP Rating = IP00, IP40, IP64
Contact Current Rating = 12 A
Manufacturer Part No. = 1241.6831.1110000V
Schurter MSM22 Series. The Schurter MSM19 series of push button switches are available in a variety of specifications. They all provide a high-quality stainless steel housing, which makes all switches highly reliable and extremely durable. With or without surface backlighting in different colours Certain models available with single-pole and double-pole switching system, switching status is easy to discern by looking at or feeling the resting position of the actuator
