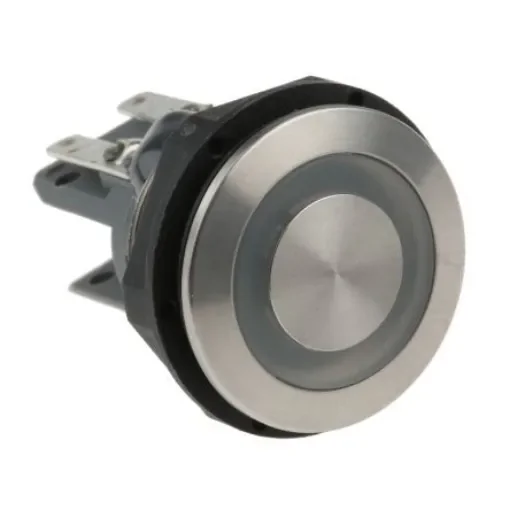

Schurter MSM 19 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Red LED, 250V ac, IP67 - 1241.6624.1181000

Switch Operation = Momentary
Illuminated = Yes
Series = MSM 19mm
Mounting Type = Panel Mount
Contact Configuration = SPDT
Voltage Rating = 250V ac
Push Button Style = Round
LED Colour = Red
IP Rating = IP67
Contact Current Rating = 5 A @ 250 V ac
Manufacturer Part No. = 1241.6624.1181000

ENEC, UL, CSA. Anti-Vandal M19 ; M22 Push Button Switches - MSM Series (Single Pole). Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102) Stainless steel housing (anodised aluminium for colour housed versions) and momentary actuator - IP67 protection for front side contact area Actuator with 4.5N operating force and 1mm travel - protrudes 1.7mm above panel Quick connect terminals Long life - up to 1,500,000 mechanical operations Non illuminated or red LED ring illuminated versions available in 19 or 22mm Ø panel cut outs Illuminated versions also include a resistor and is fixed at 24V
