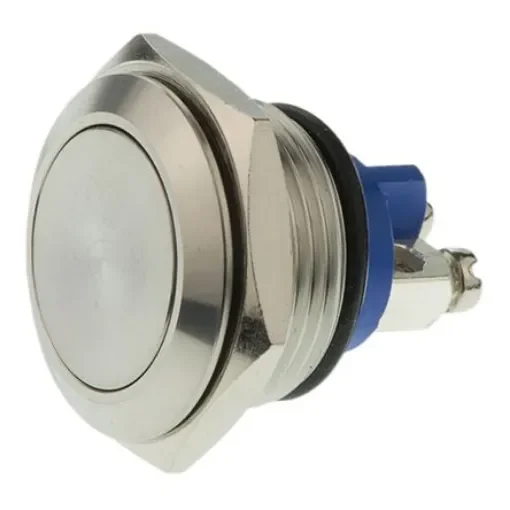

Schurter MCS ES 18 Series Push Button Switch, Momentary, Panel Mount, 18mm Cutout, SPST, 24V dc - 1301.9560
Reliable momentary push button switch with SPST configuration, perfect for panel mounting.
Manufacturer part number: 1301.9560
Availability: Out of stock
Illuminated = No
Series = MCS ES 18
Push Button Colour = Silver
Contact Configuration = SPST
Voltage Rating = 24V dc
Signal Switching Push-button Switch. Stainless steel momentary pushbutton switch Panel sealed to IP65 Screw terminals Contact rating: 50mA @ 24V d.c. Minimum switching voltage: 50mV d.c. Contact resistance: 10mO Gold contacts Mechanical life 500000 operations Electrical life 300000 operations Depth behind panel 33, max. panel thickness 6mm, panel cut-out 18mm
