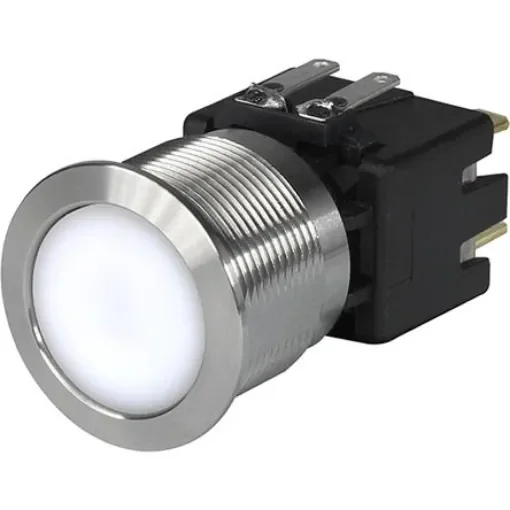

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 22.1mm Cutout, DPDT, White LED, 30 V dc, 250V ac, IP40, - 3-101-041

Switch Operation = Latching
Illuminated = Yes
Panel Cut Out Diameter = 22.1mm
Mounting Type = Panel Mount
Push Button Colour = White
Contact Configuration = DPDT
Voltage Rating = 30 V dc, 250V ac
Push Button Style = Round
LED Colour = White
IP Rating = IP40, IP64
Contact Current Rating = 16 A
Contact DC Voltage Rating = 30V

DIN EN, UL. KEMA / ENEC, CSA. Switch illumination requires a 24 V dc supply. Anti-Vandal M19 ; M22 Push Button Switches - MSM LA CS Series. The sturdy stainless steel housing and the actuator made of scratch-proof ceramic make the MSM LA CS latching action switches especially well suited for use in equipment operating in harsh environments, or applications that require protection against vandalism. These include, vending machines, ticket machines, equipment in restaurant operations, public and sanitary facilities. With actuator travel greater than 5 mm, the MSM LA CS is ideal for applications where increased feedback of the switching status (ON/OFF) is required. In the OFF state, the actuator position protrudes from the housing; in the ON state, it is recessed to the housing. This makes for user-friendly actuation and also prevents inadvertent switching. N.O. switching function Actuation force: 10 N Shock protection: IK 07
