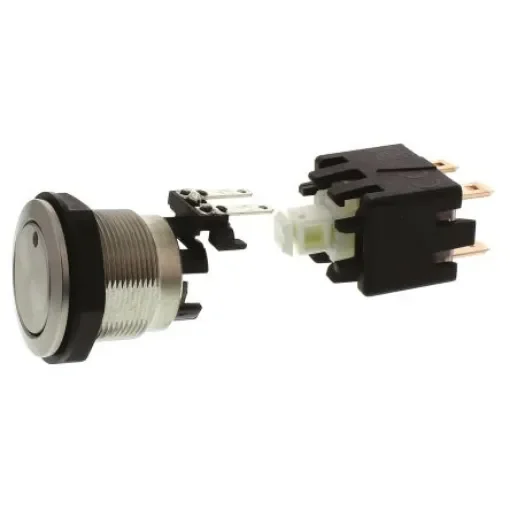

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, DPDT, Green LED, 125/250V ac, IP64 - 1241.6823.1122000

ENEC, UL, CSA. Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation. Anti-Vandal M19 ; M22 Push Button Switches - MSM LA Series (Latching). Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102) IP64 sealed stainless steel housing and latching (push-on, push-off) actuator Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state Quick connect terminals Long life - up to 150,000 mechanical operations Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs Switching status optically visible - illuminated viewing angle of 180°
