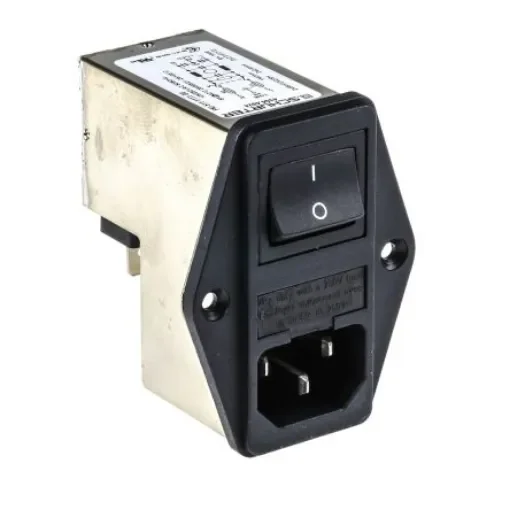

Schurter 6A, 250 V ac Male Panel Mount Filtered IEC Connector 2 Pole 4304.4024, Solder 2 Fuse
Compact male panel mount IEC connector with dual fuse for reliable electrical performance.
Manufacturer part number: 4304.4024
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Mounting Type = Panel Mount
Schurter Fuse Inlet FilterThe Schurter FKI series inlet filter is a male, panel mount type C14 IEC connector with a dual fuse. It is ultra-compact, panel mount screw-on version from the front side and has four key functions. The filter has a voltage rating of 250VAC with a high-performance current rating of 10A. It has a 2-pole Fuseholder for fuse-links of 5mm x 20mm and a 2-pole line switch. It acts as a line filter in the standard version and has class I inlet protection.Features and BenefitsNickel plated steel body Quick connect terminals of 6.3mm x 0.8mm All the single elements are already wired Plug removal necessary for fuse-link replacement Innovative EMC shielding Operating temperature ranging between -25°C and 85°CApplicationsElectrical and electronic equipment, Household equipment Single-phase and switch-mode power suppliesCertificationsVDE approved UL approved IEC 60950 / 60939 / 60601-1 EN 133200
