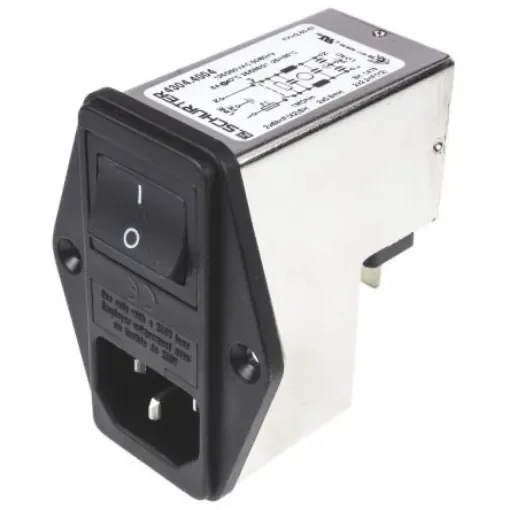

Schurter 6A, 250 V ac Male Panel Mount Filtered IEC Connector 2 Pole 4304.4004 1 Fuse
High-performance male panel mount IEC connector with 6A rating for reliable electrical connections.
Manufacturer part number: 4304.4004
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Gender = Male
Number of Fuses = 1
Fuse Size = 5 x 20mm
Switch Type = 2 Pole
Current Rating = 6A
Voltage Rating = 250 V ac
Mounting Type = Panel Mount
IEC Connector Type = C14
Width = 50mm
Depth = 55mm
Height = 65mm
Schurter Inlet IEC FilterThe Schurter FKI series IEC inlet filter is a male type C14 connector and dual fuse. It is ultra-compact, panel mount screw-on version from the front side and has four key functions. The filter has a voltage rating of 250VAC with a high-performance current rating of 6A. It acts as a line filter (in the standard and medical version), class I inlet protection. This fuse has a 2-pole holder for fuse-links of 5mm x 20mm and a 2-pole line switch.Features and BenefitsNickel plated steel body Quick connect terminals of 6.3mm x 0.8mm All the single elements are already wired Plug removal necessary for fuse-link replacement Innovative EMC shielding Operating temperature ranges between -25°C and 85°CApplicationsElectrical and electronic equipment Household equipment Single-phase and switch-mode power suppliesCertificationsVDE approved UL approved
