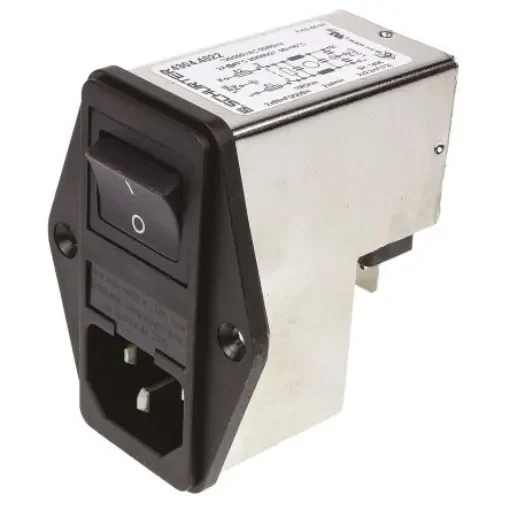

Schurter 2A, 250 V ac Male Panel Mount Filtered IEC Connector 4304.4022, Solder

Gender = Male
Termination Method = Solder
Current Rating = 2A
Voltage Rating = 250 V ac
Mounting Type = Panel Mount
IEC Connector Type = C14
Width = 50mm
Depth = 55mm
Height = 65mm

Schurter Inlet IEC FilterThe Schurter FKI series IEC inlet filter is a male type C14 connector and dual fuse. It is ultra-compact, panel mount screw-on version from the front side and has four key functions. The filter has a voltage rating of 250VAC with a high-performance current rating of 2A. It acts as a line filter (in the standard and medical version), class I inlet protection. This fuse has a 2-pole holder for fuse-links of 5mm x 20mm and a 2-pole line switch.Features and BenefitsNickel plated steel body Quick connect terminals of 6.3mm x 0.8mm All the single elements are already wired Plug removal necessary for fuse-link replacement Innovative EMC shielding Operating temperature ranges between -25°C and 85°CApplicationsElectrical and electronic equipment, Household equipment Single-phase and switch-mode power suppliesCertificationsVDE approved UL approved
