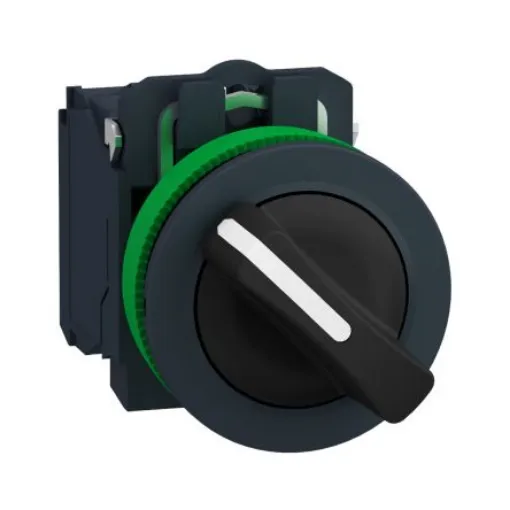

Schneider Electric Spring Return Selector Switch - (SPST) 30mm Cutout Diameter 2 Positions - XB5FD41

Selector Switch Type = Selector Switch Complete Unit
Actuator Type = Spring Return
Contact Configuration = SPST
IP Rating = IP67
Angle of Throw = 90°
Maximum Current = 6A
Series = XB5
Cutout Diameter = 30mm
Terminal Type = Screw
Maximum AC Voltage = 600V
Better World Product = YesV

Operating temperature from -40°C to 70°C High chemical robustness High vibration resistance with shake-proof terminal screws Large set of accessories to customize your panels Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board. A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching) Benefits High performance in chemical environments (cleaning solvents, alcohol, detergent, cutting oil, milk) Attractive and affordable flush mount versions, stylish and easy to clean Flexibility and adaptability through modular design Simplicity and speed of installation Wide offer providing a solution for all of your applications Applications General purpose offer covering all segments and applications:Industry Machines and control panels in packaging, material handling, pumping… Ideal in extreme environments: food and beverage, marine, etc. Building and infrastructure Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.Flush mounted selector switch 2 pos return right to left 1NO screw clamp
