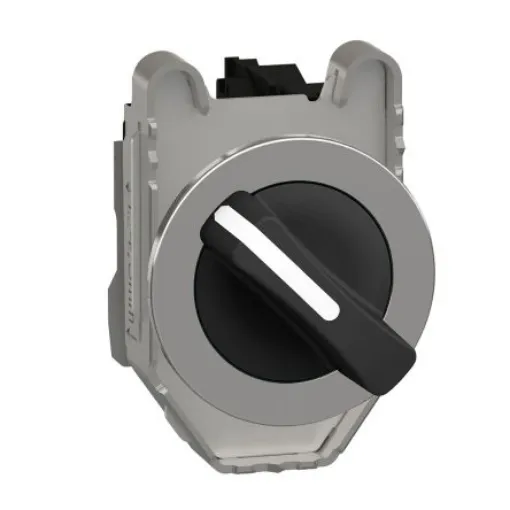

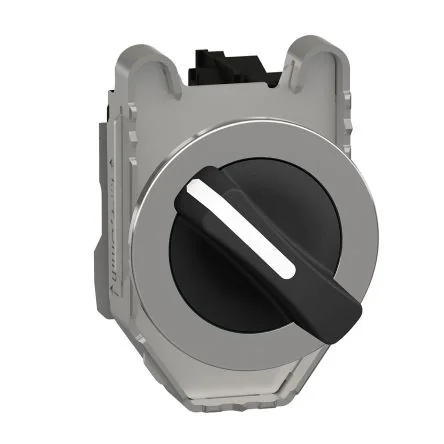

Schneider Electric Spring Return Selector Switch - (SPST) 30mm Cutout Diameter 2 Positions - XB4FD41

Selector Switch Type = Selector Switch Complete Unit
Actuator Type = Spring Return
Contact Configuration = SPST
Angle of Throw = 90°
Maximum Current = 6A
Series = XB4
Cutout Diameter = 30mm
Terminal Type = Screw
Maximum AC Voltage = 600V
Better World Product = YesV

Operating temperature from -40°C –to 70°C High vibration resistance with shake-proof terminal screws Large set of accessories to customize your panels Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching) Benefits High performance even in the most demanding environments Attractive design, reinforced with the flush mounting kit Flexibility and adaptability through modular design Simplicity and speed of installation Wide offer providing a solution for all your applications Applications General purpose offer covering all segments and applications Industry Machines and control panels in packaging, material handling, material working, pumping, etc. Ideal in extreme environments: food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.Flush mounted selector switch Ø30.5 2 pos return right to left 1NO screw clamp
