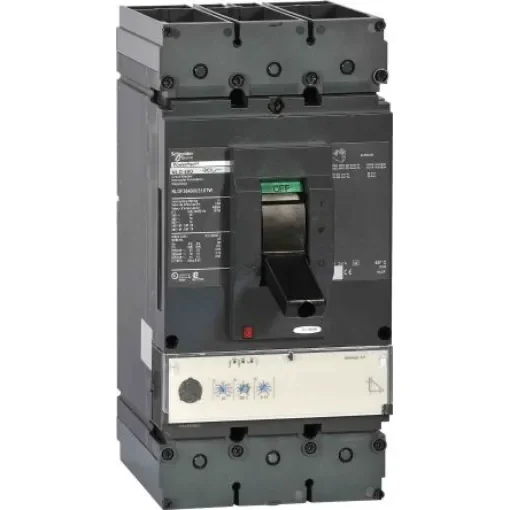

Schneider Electric, PowerPact MCCB 3P 600A, Breaking Capacity 65 kA, Fixed Mount - NLGF36600U31XTW

Range = PowerPact
Series = NH
Number of Poles = 3
Current Rating = 600A
Breaking Capacity at Maximum Voltage Rating = 65 kA
Rated AC Voltage = 750V
Mounting Style = Fixed
Better World Product = Yes
Circuit Breaker Type = MCCB

The Schneider Electric NLGF36600U31XTW is a It is a Power Pact L circuit breaker with Micro logic 3.0 trip unit. Power Pact L-frame Molded Case Circuit Breaker is designed to protect electrical systems from damage caused by overloads and short circuits. It is a 3 poles, circuit breaker .This breaker has a continuous current rating of 80% with the Micro logic 3.0 electronic trip unit technology. This breaker is certified to UL, IEC, CE, CSA Standards.IP degree of protection IP40 Mercury free
